Screening machinery plays a crucial role in various industries, from mining and construction to food processing and pharmaceuticals. It is used to separate materials of different sizes, shapes, and densities. However, one of the most common issues faced in the operation of screening machinery is the blockage of the screen mesh. Screen mesh blockage can lead to reduced screening efficiency, increased energy consumption, and even equipment damage. As a leading supplier of screening machinery, we understand the challenges posed by screen mesh blockage and have developed several effective prevention strategies.
Understanding the Causes of Screen Mesh Blockage
Before we delve into the prevention methods, it is essential to understand the root causes of screen mesh blockage. There are several factors that can contribute to this problem:
- Particle Characteristics: The size, shape, and surface properties of the particles being screened can significantly affect the likelihood of blockage. Irregularly shaped particles, such as flakes or fibers, are more likely to get stuck in the mesh openings than spherical particles. Additionally, particles with a high moisture content or those that are sticky can adhere to the mesh, causing blockage.
- Mesh Design: The design of the screen mesh, including the opening size, shape, and wire diameter, can also influence blockage. If the mesh openings are too small relative to the particle size, particles may become trapped. Similarly, a mesh with a high wire diameter may reduce the effective opening area, increasing the risk of blockage.
- Feed Rate and Distribution: An excessive feed rate can overwhelm the screening capacity of the machinery, leading to blockage. Uneven feed distribution can also cause certain areas of the mesh to become overloaded, increasing the likelihood of blockage in those areas.
- Vibration and Motion: Inadequate vibration or improper motion of the screening machine can prevent particles from passing through the mesh effectively. This can result in the accumulation of particles on the mesh surface, leading to blockage.
Prevention Strategies
Based on our extensive experience and research, we have developed the following strategies to prevent screen mesh blockage:
Select the Appropriate Mesh
- Particle Size Analysis: Conduct a thorough analysis of the particle size distribution of the material to be screened. This will help you determine the optimal mesh opening size. The mesh openings should be large enough to allow the passage of the majority of the particles while still retaining the desired separation efficiency.
- Mesh Material and Design: Choose a mesh material that is resistant to wear, corrosion, and adhesion. Stainless steel and polyurethane are commonly used materials for screen meshes due to their durability and anti - sticking properties. Additionally, consider using a mesh with a special design, such as a wedge - wire or perforated plate, which can reduce the risk of blockage.
Optimize Feed Conditions
- Control Feed Rate: Adjust the feed rate to match the screening capacity of the machinery. Use a feeder that can accurately control the flow of material onto the screen. This will prevent overloading of the mesh and ensure a consistent screening process.
- Uniform Feed Distribution: Ensure that the material is evenly distributed across the entire width of the screen. Use a distributor or spreader to achieve uniform feed distribution. This will prevent localized overloading of the mesh and reduce the risk of blockage.
Enhance Vibration and Motion
- Proper Vibration Settings: Set the vibration frequency and amplitude of the screening machine according to the characteristics of the material being screened. Higher vibration frequencies can help to dislodge particles that are stuck in the mesh openings, while appropriate amplitudes can ensure that the material moves smoothly across the screen.
- Use Advanced Motion Technologies: Consider using screening machines with advanced motion technologies, such as elliptical or circular motion. These motions can provide a more effective screening action, reducing the likelihood of particle accumulation on the mesh surface.
Implement Cleaning Mechanisms
- Self - Cleaning Meshes: Some screen meshes are designed with self - cleaning features, such as brushes or vibrating elements. These mechanisms can help to remove particles that are stuck in the mesh openings during the screening process.
- External Cleaning Systems: In addition to self - cleaning meshes, external cleaning systems can be used to periodically clean the screen mesh. These systems can include air blowers, water sprays, or ultrasonic cleaners.
Case Studies
To illustrate the effectiveness of our prevention strategies, let's look at a few case studies:
Case Study 1: Mining Industry
A mining company was experiencing frequent screen mesh blockage in their screening machinery, which was used to separate different sizes of ore particles. After conducting a detailed analysis of the particle characteristics and the screening process, we recommended replacing the existing mesh with a stainless - steel wedge - wire mesh. We also optimized the feed rate and distribution and adjusted the vibration settings of the screening machine. As a result, the screen mesh blockage was significantly reduced, and the screening efficiency increased by 30%.
Case Study 2: Food Processing Industry
A food processing company was facing issues with screen mesh blockage when screening flour. The sticky nature of the flour was causing particles to adhere to the mesh, leading to reduced throughput. We suggested using a polyurethane mesh with a special anti - sticking coating. We also installed an air - blowing system to clean the mesh during the screening process. These measures effectively eliminated the screen mesh blockage problem, and the company was able to increase its production capacity.
Conclusion
Screen mesh blockage is a common problem in screening machinery, but it can be effectively prevented through a combination of proper mesh selection, optimized feed conditions, enhanced vibration and motion, and the implementation of cleaning mechanisms. As a trusted supplier of screening machinery, we are committed to providing our customers with high - quality products and solutions to overcome this challenge.
If you are facing screen mesh blockage issues in your screening operations or are interested in upgrading your screening machinery, we invite you to contact us for a consultation. Our team of experts will work with you to develop a customized solution that meets your specific needs.

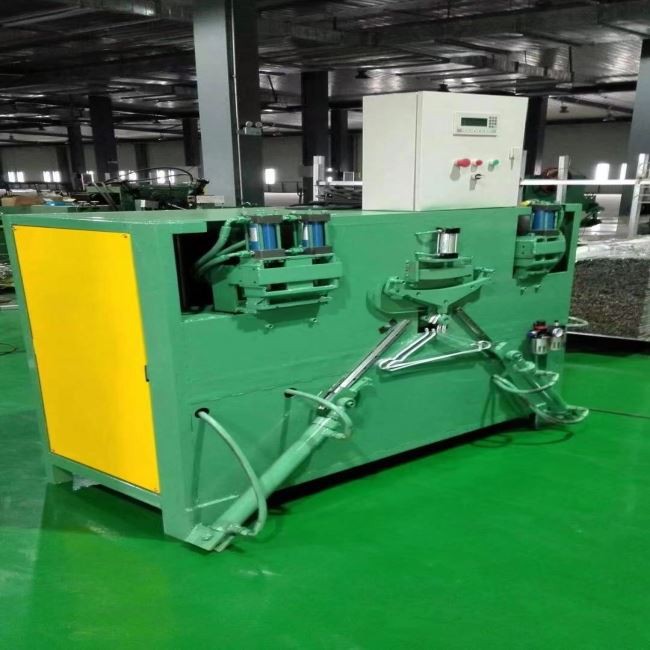

In addition to our screening machinery, we also offer a range of related products, such as the Full Automatic Wire Hanger Electrostatic Spray Powder Coating Machine, S Hook Integrated Hanger Molding Machine, and Aluminum Alloy Coat Hanger Forming Machine. These products are designed to meet the diverse needs of our customers in different industries.
Don't let screen mesh blockage slow down your production. Contact us today to discuss your requirements and take the first step towards a more efficient screening process.
References
- Smith, J. (2018). Screening Technology Handbook. CRC Press.
- Johnson, R. (2019). Particle Separation in Industrial Processes. Elsevier.
- Brown, A. (2020). Advances in Screening Machinery Design. Journal of Mining and Materials Processing, 15(2), 45 - 56.
